Magnetic Drive Pump

Magnetic Drive Pump

Product ID: TMD TypeInquiry

Description

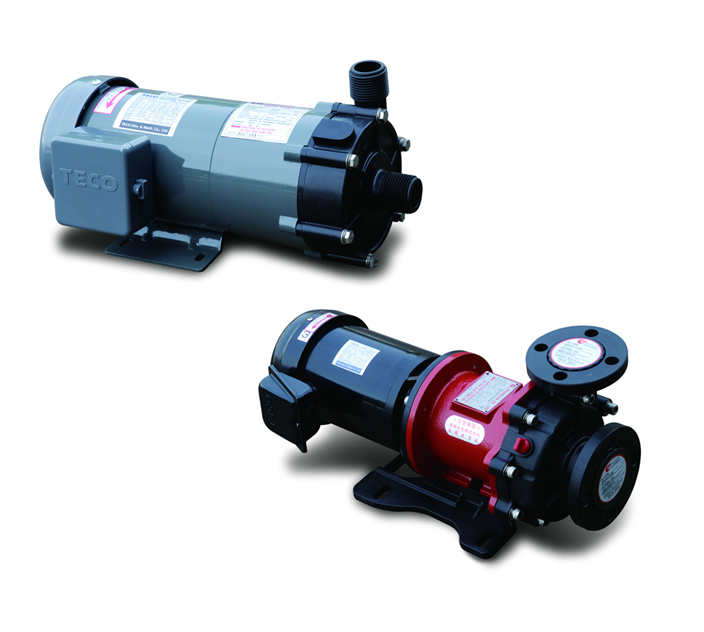

Magnetic Drive Pump is made of anti-corrosion, thermoplastic GFR-PP or PVDF and it is easy to load and unload without any special tool to replace parts. Magnetic Drive Pumps can be applied to wide range field such as sea-farming, PCB assembly process, chemical works and surface treatment of metals. And the magnet-driven seal less pumps are easy to assembly and disassembly; no need special tools to replace parts. Furthermore, thank to the free seal feature, the pump is best for the application not allowing the leakage. Trundean Machinery has over 25 years in this industry, and is capable to provide high quality Magnetic Drive Pumps to customer worldwide.

We, Trundean Machinery, are committed to maintaining product quality and innovation, production standardization, and strict inspection system, in order to ensure that Trundean roots blower, Magnetic Drive Pump and Diffusers can meet customer's requirement. We offer the best quality products and quick after-sale service. We are capable to make products according to customer’s special request. Custom-made order is welcome.

Feature



  • Superior combination of materials and a leak-free, seamless design.
  • Excellent corrosion resistant materials such as carbon, ceramics etc…
  • Designed with an emohasis on improved durability.
  • Excellent corrosion resistant.
  • Featuring enhanced reliability and safety.
  • The series can be arranged with NEMA or IEC standard motor.
  • Easy maintenance disassembly and assembly

Specification Table

Model No. Intlet Diameter
(mm)
Outlet Diameter
(mm)
Max. Capacity
50 / 60 HZ
(L/min)
Max. Head
50 / 60 HZ
(M)
Motor
(kw)
TMD-06 20 20 37 / 45 4.6 / 6.5 0.065
TMD-09 26 26 60 / 70 7 / 9.5 0.09
TMD-18 26 26 73 / 87 7 / 9.7 0.18
TMD-25 26 26 91 / 110 8.6 / 12 0.26
TMD-37 40 40 285 / 280 12.0 / 11.5 0.4
TMD-75 40 40 355 / 360 18 / 19 0.75
TMD-150 50 40 390 / 422 23 / 23 1.5
TMD-220 50 40 465 / 545 23 / 22 2.2
TMD-350 50 40 560 / 650 24 / 34 3.7
